Hydraulic Excavation thiab Hloov Kho Drilling Rigs T2
Drilling txoj kab uas hla: 76-102mm
Lub zog hluav taws xob: 22 kW
Laum yeeb nkab ntev: 3.66 m
Muaj feem xyuam: pob zeb blasting, municipal engineering, pob zeb engineering

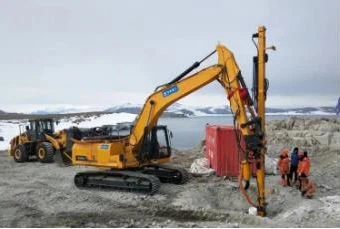

Hydraulic excavation thiab hloov kho drilling rigs T2 Series: Nws yog mounted rau ntawm lub excavator thiab tsuas yog siv rau blasting nyob rau hauv txhua yam ntawm cov pob zeb ua hauj lwm. Lub laum yog nruab nrog kev xaiv sab saum toj-tsav hydraulic pob zeb laum rau kev ua haujlwm siab drilling, uas paub txog cov yam ntxwv ntawm drilling automation, kev ua haujlwm ruaj khov thiab tsis tshua muaj nqi, thiab lwm yam. Cov khoom xaiv yog T1, T2 thiab T6.
Tag nrho hydraulic khawb thiab drilling tshuab muaj qhov zoo hauv qab no: Ntau lub hom phiaj: tsis hloov cov roj hluav taws xob, nws tuaj yeem paub qhov kev hloov pauv sai ntawm excavator thiab drilling tshuab, thiab yoog raws cov haujlwm ntawm kev khawb, drilling thiab pob zeb drilling.
Kev hloov ceev thiab yooj yim: txais kev sib txuas ceev thiab nrawm-ntxig tsim, kev ua haujlwm yooj yim, txuag lub sijhawm thiab nqi zog.
Kev ua haujlwm ntse: lub tshuab hluav taws xob hydraulic tuaj yeem kho qhov nrawm nrawm raws li hauv av, txhim kho drilling efficiency thiab txo cov neeg kho tshuab tsis ua haujlwm. Kev ua haujlwm zoo drilling: yoog mus rau qhov sib txawv stratum, muaj peev xwm zoo drilling.
Flexibility: loj thiab yoog raws lub voj voog khiav haujlwm, 360 degree kev sib hloov yam tsis muaj lub kaum sab xis tuag, muaj feem xyuam rau ntau qhov chaw ua haujlwm engineering.
Khoom Parameter:
| Pob zeb Drill Parameters | Impact zog: | 22 kWm | |
| Rotary torque: | 1522nm ua | Impact zaus: | 38 Hz |
| Rotary ceev: | 0-140rpm | Impact siab: | 200bar ua |
| Rotary siab: | 140bar ua | Impact flow rate: | 120L / min |
| Rotary flow rate: | 75L / min | Drilling txoj kab uas hla: | 76-115 hli |
| Qhov hnyav: | 230kg ua | Parameters ntawm propulsion beam thiab thruster |
|
| Tag nrho qhov ntev ntawm propulsion beam: | 7.2m | Length ntawm laum yeeb nkab: | 3.66m |
| Pushing quab yuam: | 20kn ua | Number of xyaum kav: | 2 cev |
| Lifting zog: | 20kn ua | Qws hloov hom: | Semi-automatic pas nrig hloov |
| Pob zeb xyaum stroke: | 4.2m | Drilling qhov tob: | 7.3m |
| Screw cua compressor parameters |
|
Kev tshem tawm: | 4.5³ / min |
| Tso tawm siab: | 5-8bar | Excavator xav tau: | Ntau tshaj lossis sib npaug li 20t |
Daim ntawv teev kev tsim kho
